TFS filtration units
- TIG TFS 3700/63
- TIG TFS 5000/84
- TIG TFS 6700/112
- TIG TFS 8400/140
- TIG TFS 10000/168
- TIG TFS 11700/196
- TIG TFS 13400/224
| Suction power | 6700 m³/h |
| Pressure drop | 1500 Pa |
| Motor power input | 7.5 kW |
| Motor current rating | 13.8 A |
| Noise level | 72 dB |
| Degree of separability | 99.96% |
| Standard of separability | DIN EN60335-2-69 |
| Filtration area | 112 m² |
| Filter element | Filter cartridge 200x985 – 7m² (TFS) |
| Number of filter elements | 16 |
| Width | 1644 mm |
| Length | 1898 mm |
| Height | 3193 mm |
| Weight | 954 kg |
| Starter | Frequency converter |
| DN suction | DN450 |
| DN exhaust | DN280 |
| Number of valves | 4 |

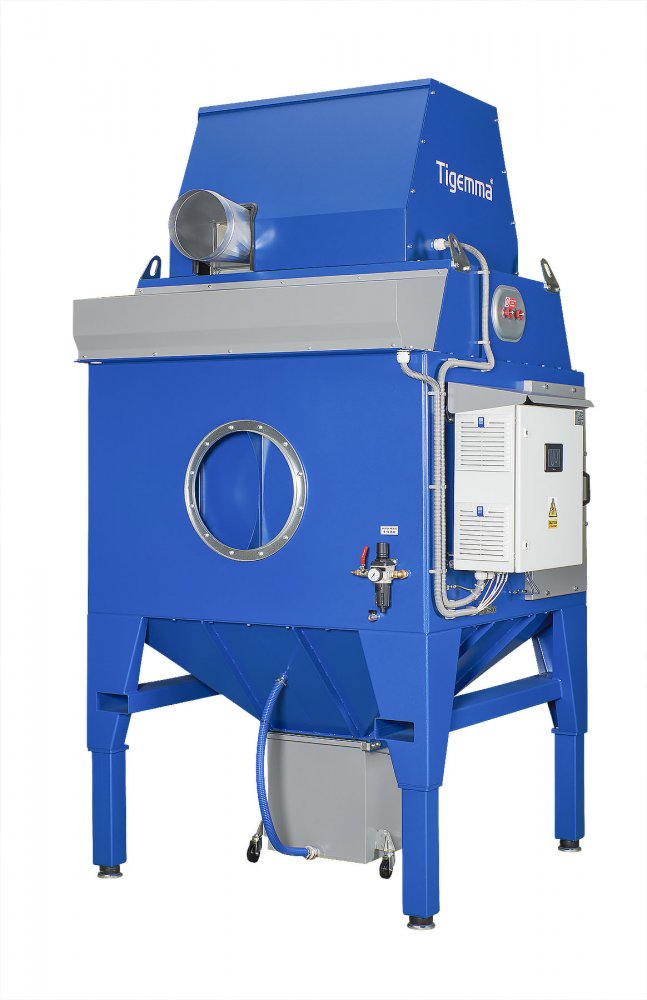

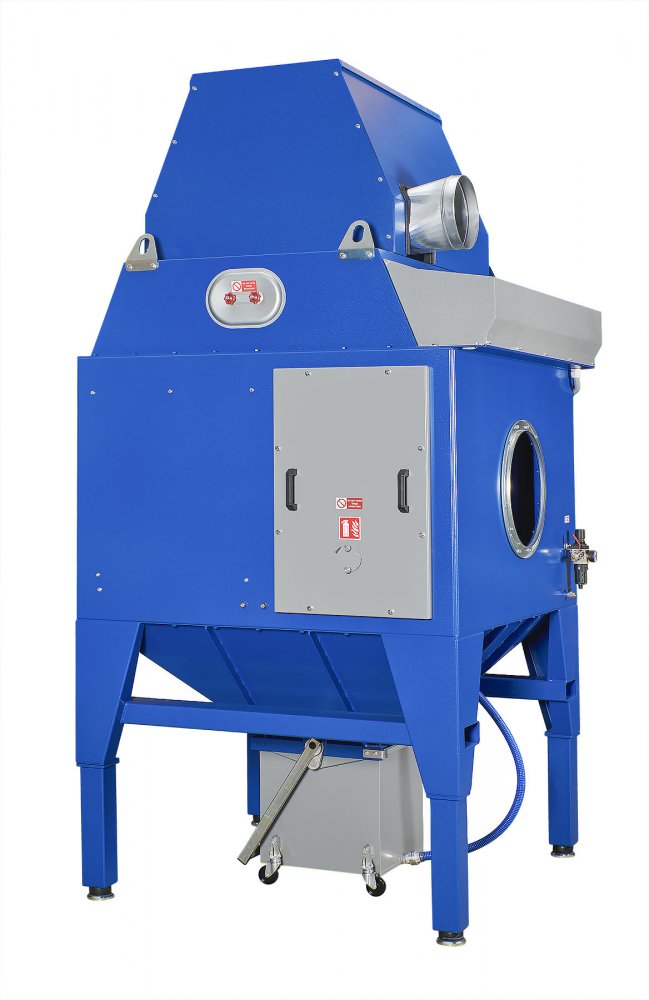

The device can be located in the inside of the workshop or in outdoor areas: The ingress protection against external influences is IP44 for the filtration unit and IP54 for the switchboard. The anti-corrosion protection is provided by a high-quality, two-component polyurethane coating. The protective canopy increases the resistance of the device; it is purely optional. The device is suitable for returning the filtered air mass back to the production area.
The control unit allows remote control of the set parameters by the manufacturer or servicing organisation. It evaluates the current pressure gain (the difference in air pressure between the inlet and outlet surfaces of the filter element) and automatically sets the necessary cleaning parameters and controls the entire cleaning cycle, including the display and evaluation of operating conditions.
A frequency converter ensures the smooth start-up of the fan.
The material of the filter elements is classified in category M (according to DIN EN 60335-2-69). By selecting the appropriate filter material and filter surface loading, the operating parameters can be optimised for the specific technology.
Options and their use
| TIG TFS 6700/112/ETF | Polyester PTFE membrane 973995 | Thermal cutting of metals |
| TIG TFS 6700/112/EPF | Polyester 973010 | Blasting, grinding |
| TIG TFS 6700/112/ALU | Polyester PTFE membrane antistatic 973116 | Thermal cutting Al |
| TIG TFS 6700/112/EAF | Polyester PTFE membrane antistatic 973116 | Cast iron, plastics |
| TIG TFS 6700/112/ENF | Polyester PTFE membrane coating 973022 | Welding fumes |
