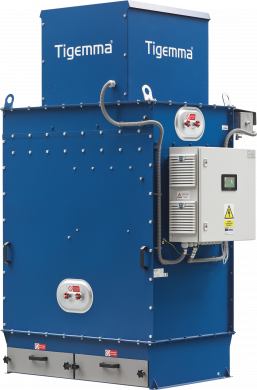

TFD filtration units
- TIG TFD 1250/19
- TIG TFD 1850/28,5
- TIG TFD 2450/38
- TIG TFD 3050/47,5
- TIG TFD 3650/57
- TIG TFD 4250/66,5
- TIG TFD 4850/76
| Suction power | 4850 m³/h |
| Pressure drop | 1000 Pa |
| Motor power input | 5.5 kW |
| Motor current rating | 10.3 A |
| Noise level | 72 dB |
| Degree of separability | 99.96% |
| Standard of separability | DIN EN60335-2-69 |
| Filtration area | 76 m² |
| Filter element | Filter assembly FPL 764 x 1200 – 9.5 m² (TFD) |
| Number of filter elements | 8 |
| Width | 1349 mm |
| Length | 1794 mm |
| Height | 2504 mm |
| Weight | 670 kg |
| Starter | Frequency converter |
| DN suction | DN315 |
| DN exhaust | DN315 |
| Number of valves | 8 |
The device can be located in the inside of the workshop or in outdoor areas: The ingress protection against external influences is IP44 for the filtration unit and IP54 for the switchboard. The anti-corrosion protection is provided by a high-quality, two-component polyurethane coating. The protective canopy increases the resistance of the device; it is purely optional. The device is suitable for returning the filtered air mass back to the production area.
The control unit allows remote control of the set parameters by the manufacturer or servicing organisation. It evaluates the current pressure gain (the difference in air pressure between the inlet and outlet surfaces of the filter element) and automatically sets the necessary cleaning parameters and controls the entire cleaning cycle, including the display and evaluation of operating conditions.
A frequency converter ensures the smooth start-up of the fan.
The material of the filter elements is classified in category M (according to DIN EN 60335-2-69). By selecting the appropriate filter material and filter surface loading, the operating parameters can be optimised for the specific technology.
Options and their use
| TIG TFD 4850/76/ALU | Polyester PTFE membrane antistatic 973116 | Thermal cutting Al |
| TIG TFD 4850/76/AAF | Polyester PTFE membrane antistatic 973116 | Cast iron, plastics |
| TIG TFD 4850/76/APF | Polyester 973010 | Blasting, grinding |
| TIG TFD 4850/76/ATF | Polyester PTFE membrane 973995 | Thermal cutting of metals |
| TIG TFD 4850/76/ANF | Polyester PTFE membrane coating 973022 | Welding fumes |
