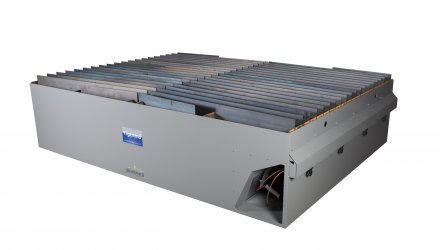

Extraction workbenches

Designed for cutting thick materials, plasma cutting with a current of up to 350A (short-term up to 400A). Produced in widths of 1.5-6 m and in any length (0.5-m increments). They can be fitted with a plate catch that prevents pulling out during material handling by means of electromagnetic clamps.

Maximum load	1800 kg/m²
Maximum load (steel thickness)	220 mm
Section width	515 mm
Height	700 mm
Max. width	6124 mm
Max. length	unlimited

Double channel design, with a width from 3124 mm.
Plates – optionally straight or serrated.
Workbench control with pneumatic (by means of a rail) or electro-pneumatic opening of the flaps as an option.
Manual cleaning of the workbench.
Frontal connection of the workbench to the ventilation system; connection under the workbench is possible on request.
Compressed air piping is made of copper.
Plates: Thickness 12 mm, height 150 mm, pitch 250 mm.

Extraction workbenches (sectional material workbenches) represent the most effective solution to the problem of the working environment in thermal cutting of metals, their welding, soldering, grinding, etc. Polluted air does not spread around the workshop and is directly channelled into the filtration unit. Coarse impurities are separated and fall into the collection trays of the workbench.

The workbenches are designed for thermal cutting of metals by flame, plasma and laser. Only a limited space under the cut part is extracted, which significantly reduces the power requirements of the filtration unit and increases the extraction efficiency.
