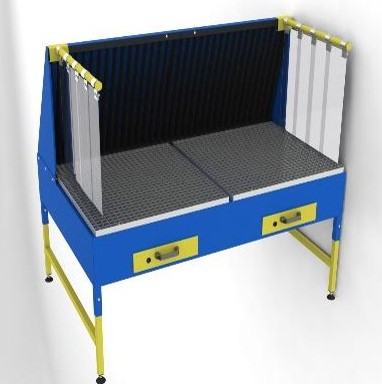

Extraction workbenches

T03 grinding and welding workbenches are designed for welding and grinding.
Suction power 3100 m³/h 3100 m³/h 4600 m³/h 4600 m³/h
Width 1194 mm 1194 mm 1194 mm 1194 mm
Length 1794 mm 1794 mm 2676 mm 2676 mm
Height 1460 mm 1460 mm 1460 mm 1460 mm
Weight 215 kg 230 kg 310 kg 333 kg
DN suction 2xDN200 2xDN200 2xDN160 2xDN160
Grid Wooden Steel Wooden Steel
Working area 850÷1775 mm 850÷1775 mm 850÷2650 mm 850÷2650 mm

The workbenches can process parts with a size exceeding the size of the table thanks to flexible side hinges that catch flying particles.

The trapped dirt falls into the dust drawer, which is accessible from the front of the workbench and allows easy cleaning of the same.

  • Adjustable workbench height.
  • Optional steel or wooden work grid.
  • Easy capture of sparks and mechanical impurities.

Grinding workbenches data sheet
