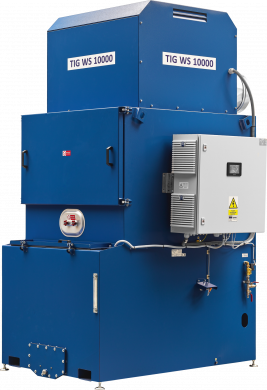

Water separators

The water separators are used for the extraction of solid pollutants of a dry granular and loose character generated during mechanical grinding of material, including Al (excluding Mg). They can also be used in the industrial preparation of flammable and explosive powders (according to EU Legislation ATEX, Directive 2014/34 / EU, NV116 / 2016Sb Equipment of group II category 3D/G) or bulk materials (sieving, sorting, mixing, filling, etc.)

Suction power	6000÷10,000 m³/h
Pressure gain	2500 Pa
Motor power input	15.0 kW
Filter element	Water
Starter	Frequency converter
DN suction	DN400
DN exhaust	DN355

The extracted polluted air passes through the water charge and is cleaned in the baffle system. The resulting water chips trap pollutants, which are collected as sludge by special plates and discharged into the sludge tank. The dust-free air flows through the separator assemblies, where it gets rid of water droplets and exits the separator.

When switched OFF, the upper part of the filtration is ventilated through the air duct by a chimney effect. The critical area at the bottom of the filtration, where hydrogen generated by some specific technologies and subsequent air cleaning could collect, is ventilated by a flap that opens automatically when the separator is switched off, independently of the power supply.
