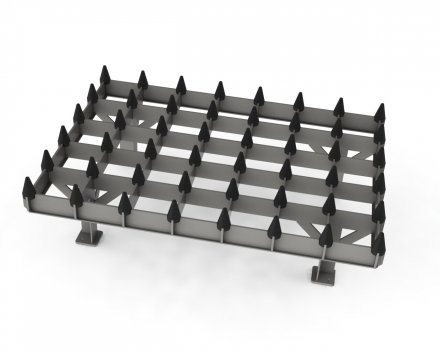

Cutting frames

The thermal metal cutting frame replaces the material section workbench where the extraction of contaminated air through the workbench is not required.
Maximum load 2400 kg/m²
Maximum load (steel thickness) 300 mm
Width 1480 mm
Length 1760 mm
Height 730 mm
Weight 369 kg
Number of support pins 42

The frame is designed for cutting steel sheets up to 300 mm thick (frame load capacity 2400 kg/m2). The required overall dimensions are achieved by combining the individual frames.
