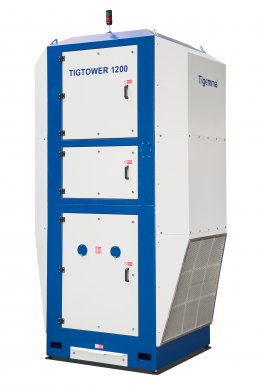

TIGTOWER filter towers

dsc5482.jpg dsc5526.jpg dsc5567.jpg dsc5654.jpg
The filter tower is primarily designed for the extraction of welding fumes and it represents an alternative for extraction in welding areas, especially where there is a high flexibility of individual workplaces. The tower can be handled within the hall according to the current arrangement of welding activities.
Suction power 12,000 m³/h
Motor power input 7.5 kW
Noise level 70 dB
Degree of separability 99.96%
Filtration area 180 m²
Filter element Filter cartridge 327 x 1205 – 20m² (TIGTOWER)
Number of filter elements 9
Width 1790 mm
Length 2011 mm
Height 3880 mm
Weight 1513 kg
Starter Frequency converter

Advantages:

  • adjustable times and time intervals for automatic extraction with no staff required;
  • the installation does not require HVAC pipelines;
  • low operating and acquisition costs (no fixed installation of the device);
  • the number of towers in a given space can set the desired air exchange efficiency.
